Radium Engineering Fuel Cells RA-Series - 6/ 10 / 10.5/ 14/ 22 Gallon

Fitment Information

• Nissan Silvia S13 (All models/trims/RHD/LHD)

• Nissan 180SX S13 (All models/trims/RHD/LHD)

• Nissan Silvia S14 (All models/trims/RHD/LHD)

• Nissan 200SX S14 (All models/trims/RHD/LHD)

• Nissan 240SX S14 (All models/trims/RHD/LHD)

• Nissan Silvia S15 (All models/trims/RHD/LHD)

• Nissan 200SX S15 (All models/trims/RHD/LHD)

• Nissan R32 Skyline (All models/trims/RHD/LHD)

• Nissan R33 Skyline (All models/trims/RHD/LHD)

• Nissan R34 Skyline (All models/trims/RHD/LHD)

Specifications

CONSTRUCTION

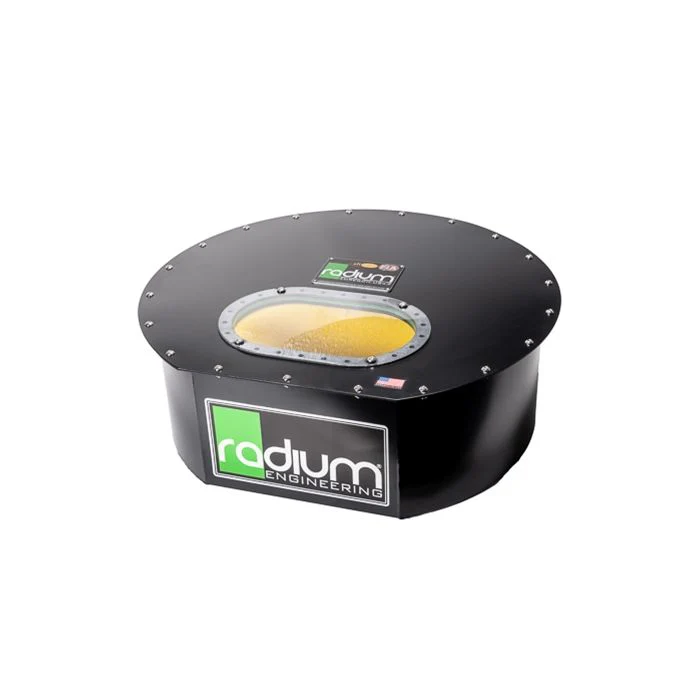

The heart of the fuel cell is the bladder (shown below in green). This component undergoes thorough testing and carries the critical certifications. Radium RA-series bladders are made from a special polymer that is resistant to ALL fuel types (gasoline, diesel, AV gas, E15, E85, ethanol, methanol, etc).

The bladder is housed in a lightweight powder coated aluminum enclosure that protects from damage and debris. Pre-cut explosion suppressing anti-slosh foam is included as well as an innovative threaded aluminum nut ring which makes fuel pump installation fast and easy.

The manufacturing process for these fuel cell bladders inherently require large tolerances creating a variance in physical size. The volumes listed below are the expected ranges for each bladder. NOTE: These measurements do not account for any objects inside the fuel cell.

• 20-0606

  • Gallons: 5.4 - 6.0

  • Liters: 20.3 - 22.7
• 20-0610

  • Gallons: 9.2 - 10.0

  • Liters: 34.8 - 37.9
• 20-0611

  • Gallons: 10.3 - 10.5

  • Liters: 38.9 - 39.7
• 20-0614

  • Gallons: 13.7 - 14.0

  • Liters: 51.9 - 53.0
• 20-0622

  • Gallons: 21.5 - 22.0

  • Liters: 81.5 - 83.3

What's Included?

• Seamless Polymer Bladder

• Explosion Suppressing Anti-Slosh Foam

• Powder Coated Aluminum Enclosure

• Anodized Aluminum Nut Ring

• Removable Inspection Plate

• FKM 6x10 24-bolt Gaskets, x2

• Stainless Steel Hardware

• Certification of Conformance

Product Description

A competition grade fuel cell provides maximum performance and safety for high performance vehicles. RA-series fuel cells are designed and manufactured by Radium Engineering to meet top safety requirements set forth by the worldwide safety organizations FiA and SFI.

These fuel cells are excellent for all types of motorsports disciplines including road racing, time attack, drifting, rally, off-road racing, endurance, and many more.
