Radium Engineering Fuel Hanger Plumbing Kit Mitsubishi Evo 7-8-9 - Microglass or Stainless Filter

Fitment Information

• Mitsubishi Evolution VII

• Mitsubishi Evolution VIII

• Mitsubishi Evolution IX

Specifications

• Anodized Aluminum Mounting Plate

• Venturi Jet Pump with Pressure Relief Valve

• 8AN Male and OEM Compatible Pump Outlet Fittings

• 6AN Male and OEM Compatible FPR Inlet Fittings

• Anodized Aluminum Dual Pump and Fuel Sensor Bracket

• Electrical Hardware for Fuel Pumps and OEM Sender

• Fluorosilicone Duckbill Return Valve

• Submersible Fuel Lines

• Stainless Steel Hardware and Clamps

• New Anti-rotation Electrical Terminals

This system is ONLY compatible with the following pumps:

• 20-1340

  • AEM 50-1220 (or other pumps with exact same form factor)

  • DW440
• 20-1342

  • Walbro F90000267

  • Walbro F90000274

  • Walbro F90000285

  • a.k.a. "Walbro 450"

NOTE: These kits eliminate the OEM hanger's "post" fuel pump filter. A low micron aftermarket fuel filter should be installed downstream to protect the injectors from debris. NOTE: the optional fuel hanger plumbing kits listed below include this necessary post pump filter.

What's Included?

• Fuel Filter (-03 Stainless or -05 Microglass)

• Black 8AN Male Adapter Fittings (x2)

• Billet Aluminum 60mm Filter 2-Piece Clamp

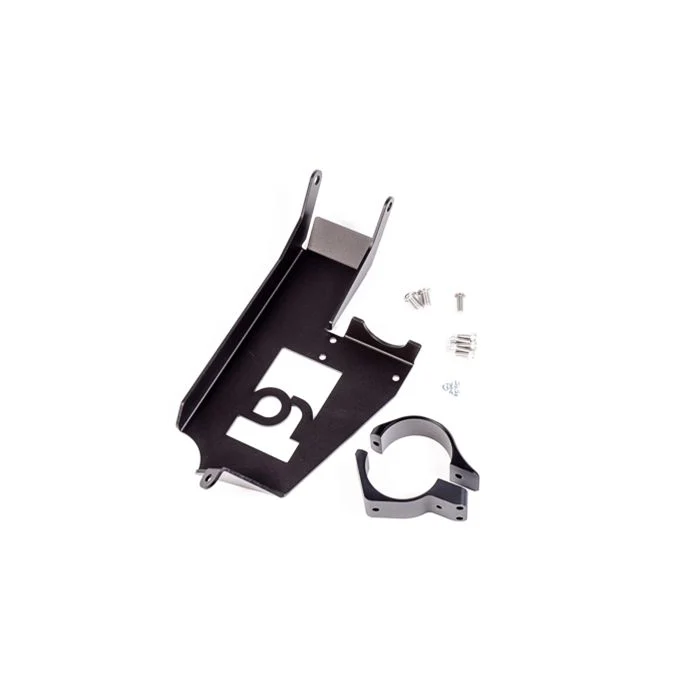

• Aluminum EVO 7-8-9 Filter Bracket

• 8AN PTFE Fuel Feed Hose Replacement (x2)

• 6AN PTFE Fuel Return Replacement

• EFI Fuel Hose, 6AN ORB Fitting, and EFI Clamp

• Inverted Flare to 6AN Adapter Fitting

• Stainless Steel Hardware

Product Description

The plumbing kits include everything required to connect directly to an aftermarket (-8AN male) fuel rail and (-6AN male) FPR for both single and dual pump configurations.  This includes a pre-made PTFE -8AN feed line from the hanger up to the engine bay and the kit re-uses the factory feed line as the regulator return line.

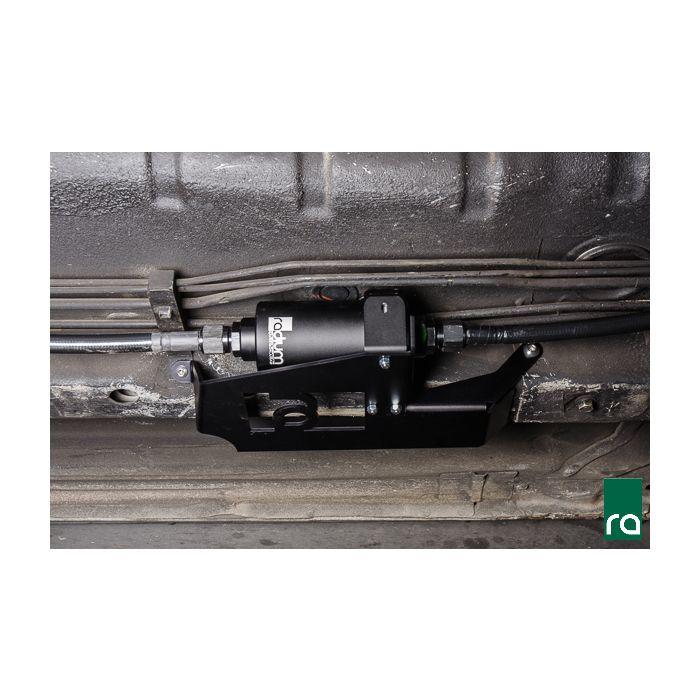

PTFE -8AN hoses attach to a Radium Engineering fuel filter that mounts underneath the vehicle using a specifically designed EVO 7-8-9 bolt-on bracket.
