Radium Engineering Fuel Hanger Toyota Supra MK4 - Walbro GSS342 AEM 50-1200/ Walbro F90000267/274/285/ TI Automotive E5LM

Fitment Information

• Compatible with the following fuel pumps:
  • Walbro GSS342 255lph
  • AEM 50-1200
  • AEM 50-1230
  • AEM 50-1235
  • Walbro DCSS 39/50 fuel pump part numbers: F90000267, F90000274, F90000285

  • Ti Automotive E5LM
• Compatible with the following model:
  • Toyota MK4 Supra (JZA80)

Specifications

• Drop-In OEM Replacement
• Permits 1-3 Pumps and 1-2 E5LM Pumps
• 8AN Male Pump Outlet
• 6AN Male Return Inlet
• Fuel Starvation Protection
• High Current Electrical Hardware
• Compatible with Various Pumps
• Anodized Aluminum Construction

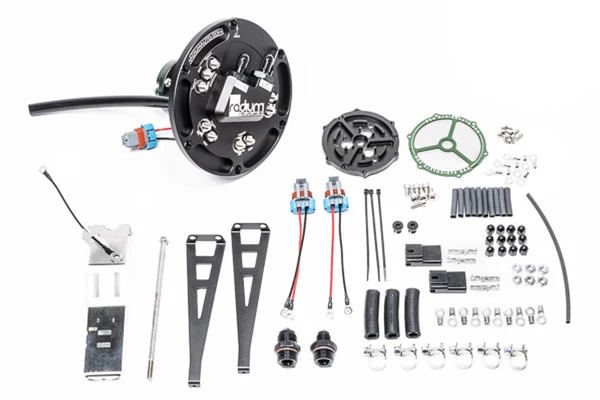

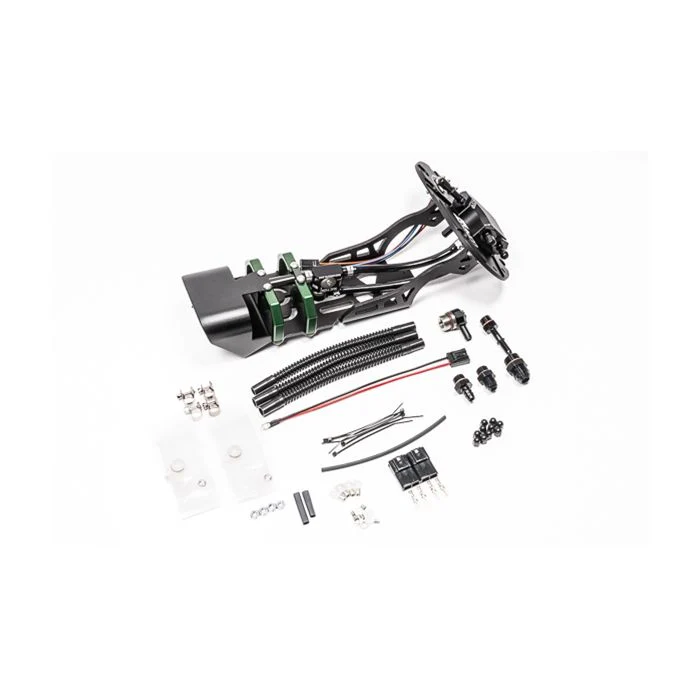

What's Included

• 8AN Male Fitting for Pump Outlet
• 6AN Male Fitting for Aftermarket Return
• 8.5mm Barb Hose End for OEM Return
• 6.5mm Barb Fitting for OEM Vent
• OEM Fuel Sensor Mount
• Venturi Siphon Jet Pump
• Fuel Resistant Submersible Tubing
• Fuel Resistant ETFE Insulated Wiring
• Stainless Hardware
• Pump Inlet Filtration


NOTE:  PUMPS NOT INCLUDED

Product Description

The Radium Engineering fuel pump hanger permits the use of 1, 2, or 3 aftermarket pumps in the stock MK4 Toyota Supra (JZA80) fuel tank. No permanent fuel access cover modification is required.

To simplifying aftermarket -AN hose plumbing, the 10AN ORB threaded feed port (depicted below) features a low profile 8AN male fitting and the 8AN ORB threaded return port features a low profile 6AN male fitting.

Because the fuel pumps utilize integrated check valves, the pump outlets merge into a single 10AN billet collector (20-1511 includes check valves for pump outlets). To reconnect the OEM return and vent hoses, barb fittings are also included.
