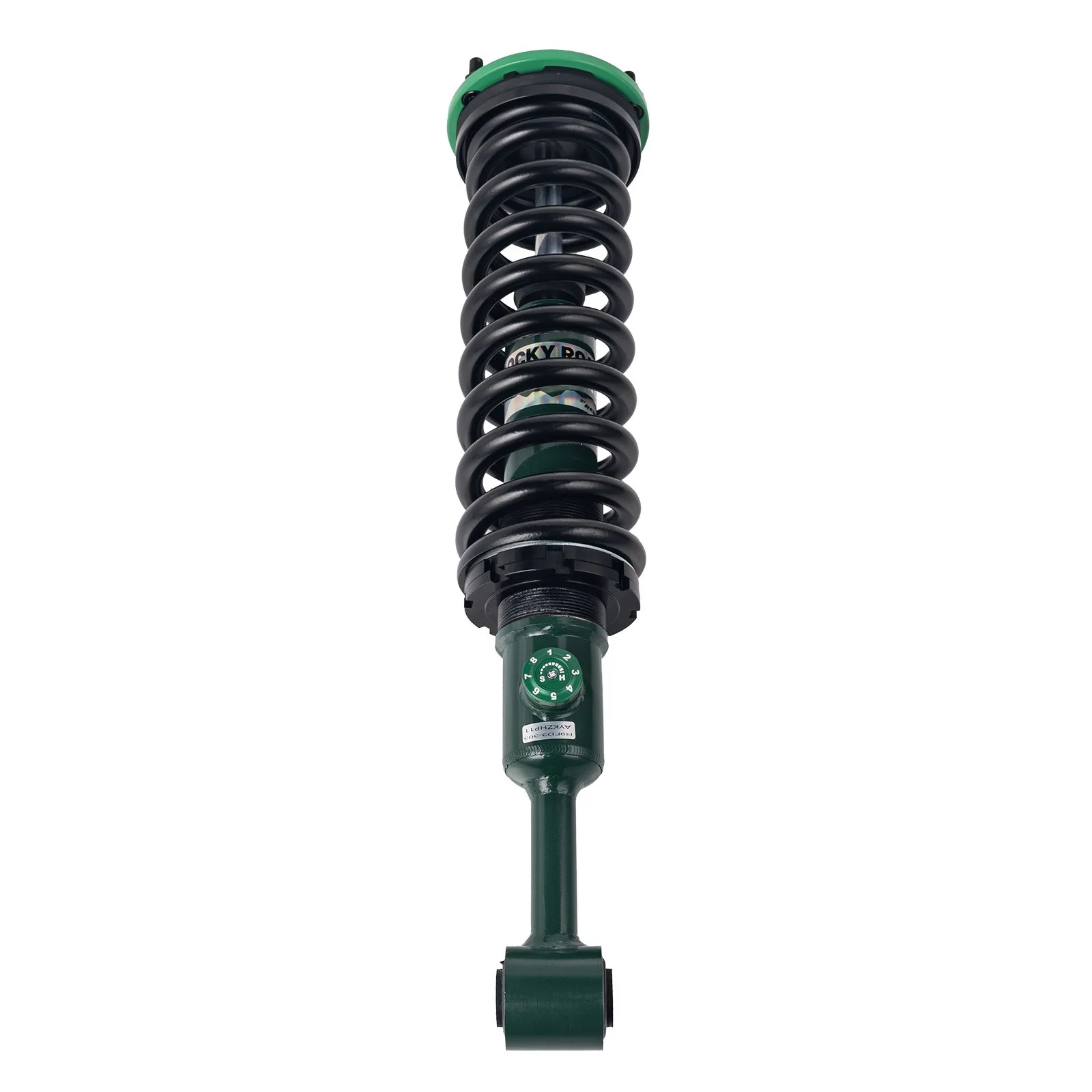

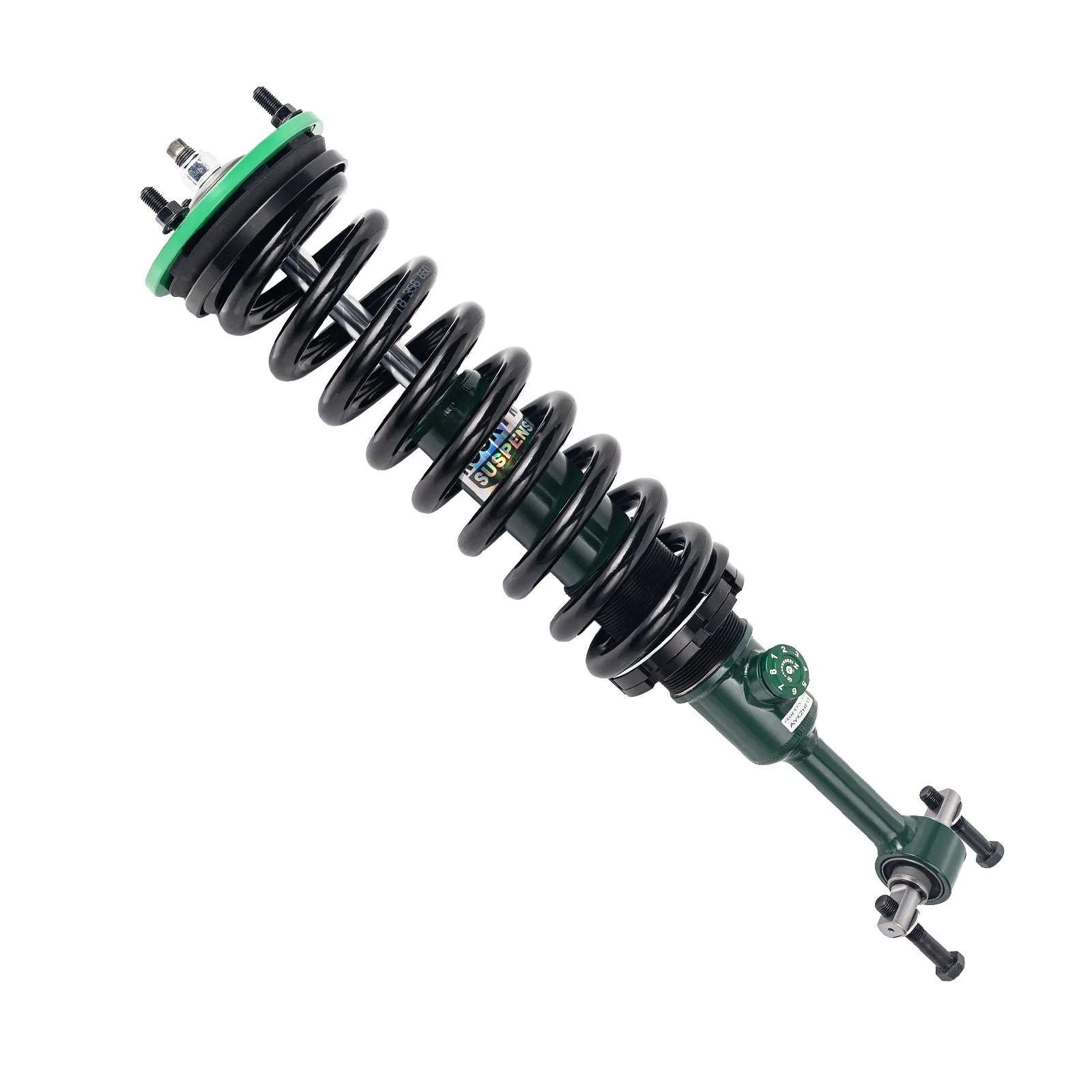

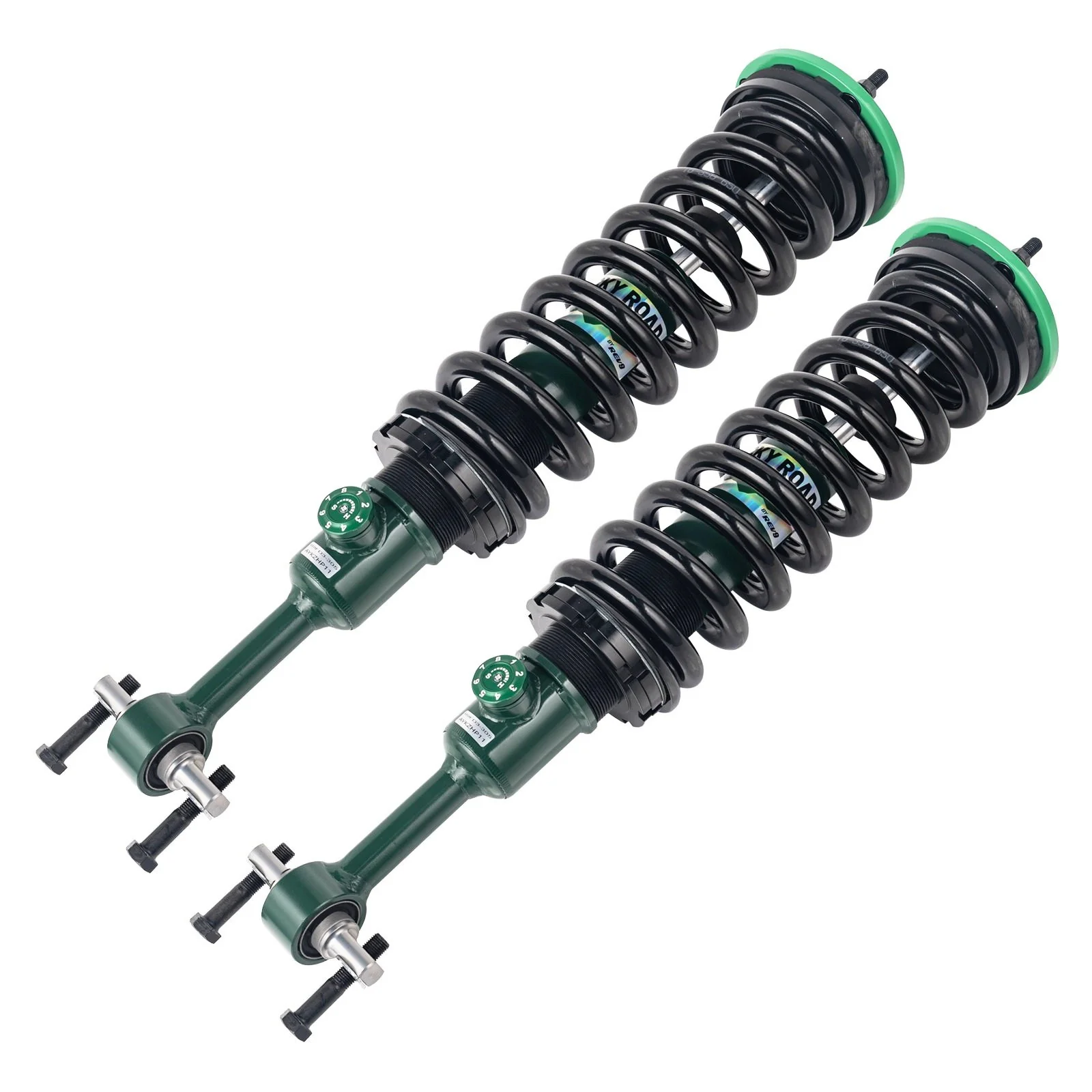

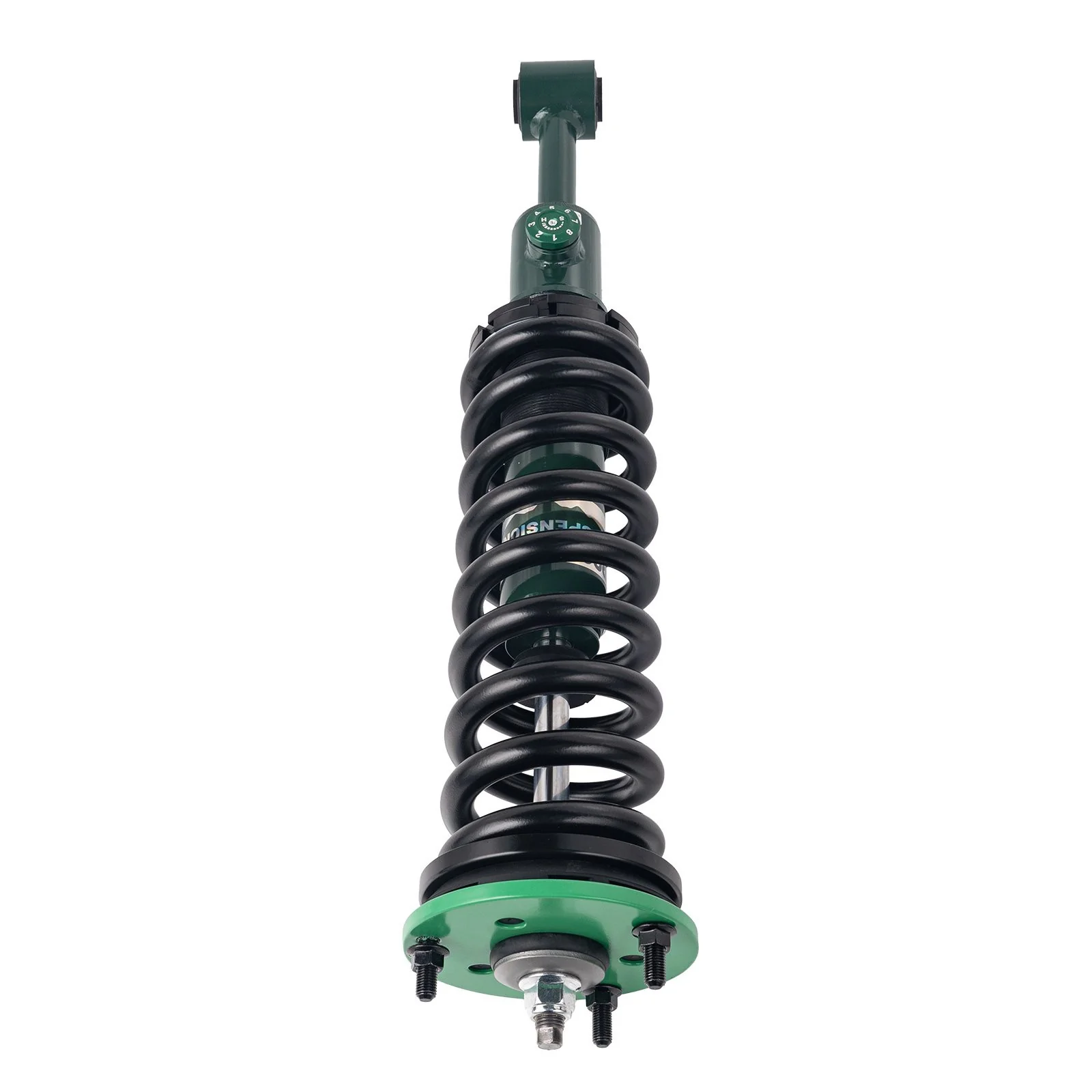

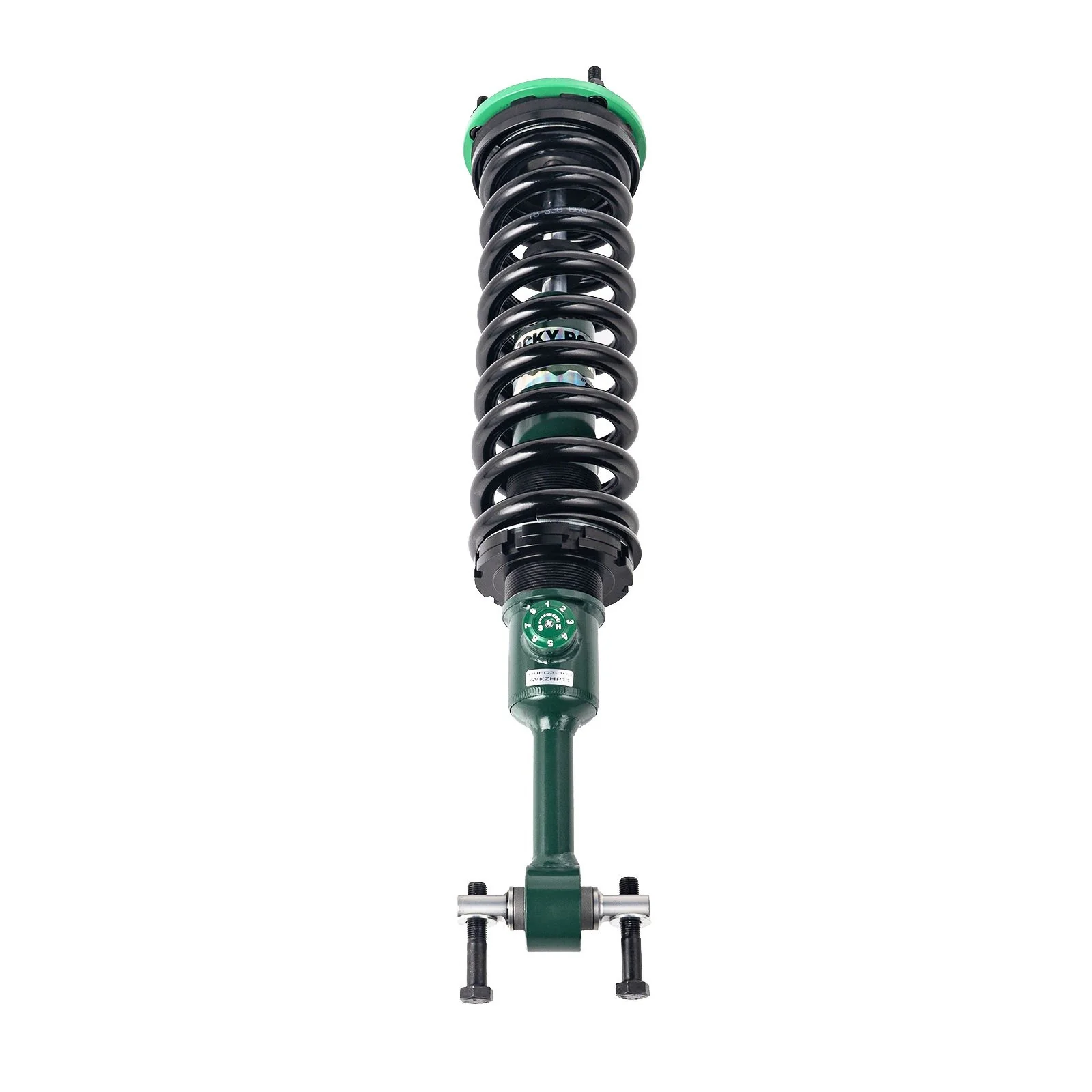

Rev9 Rocky Road Front Lift Coilovers for Ford F150 RWD (2009–2020) Adjustable - Up To 2"

Fitment Information

• Ford F150 RWD (2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020)

  • Does not fit 2007 "Classic" - Old body style Model

Special Notes

• MagneRide requires a module to disable the service light and lift speed limit @ 80mph (Sold separately)

Specs & Features

• Sold in Pairs
• Lift Height: 0–2 inches (adjustable)
• Damping Levels: 8-Level

• Height Adjustment: Yes

• Spring Rate(Front): 650 lbs/inch

• Spring Length(Front): 356 mm (14.02 inch)

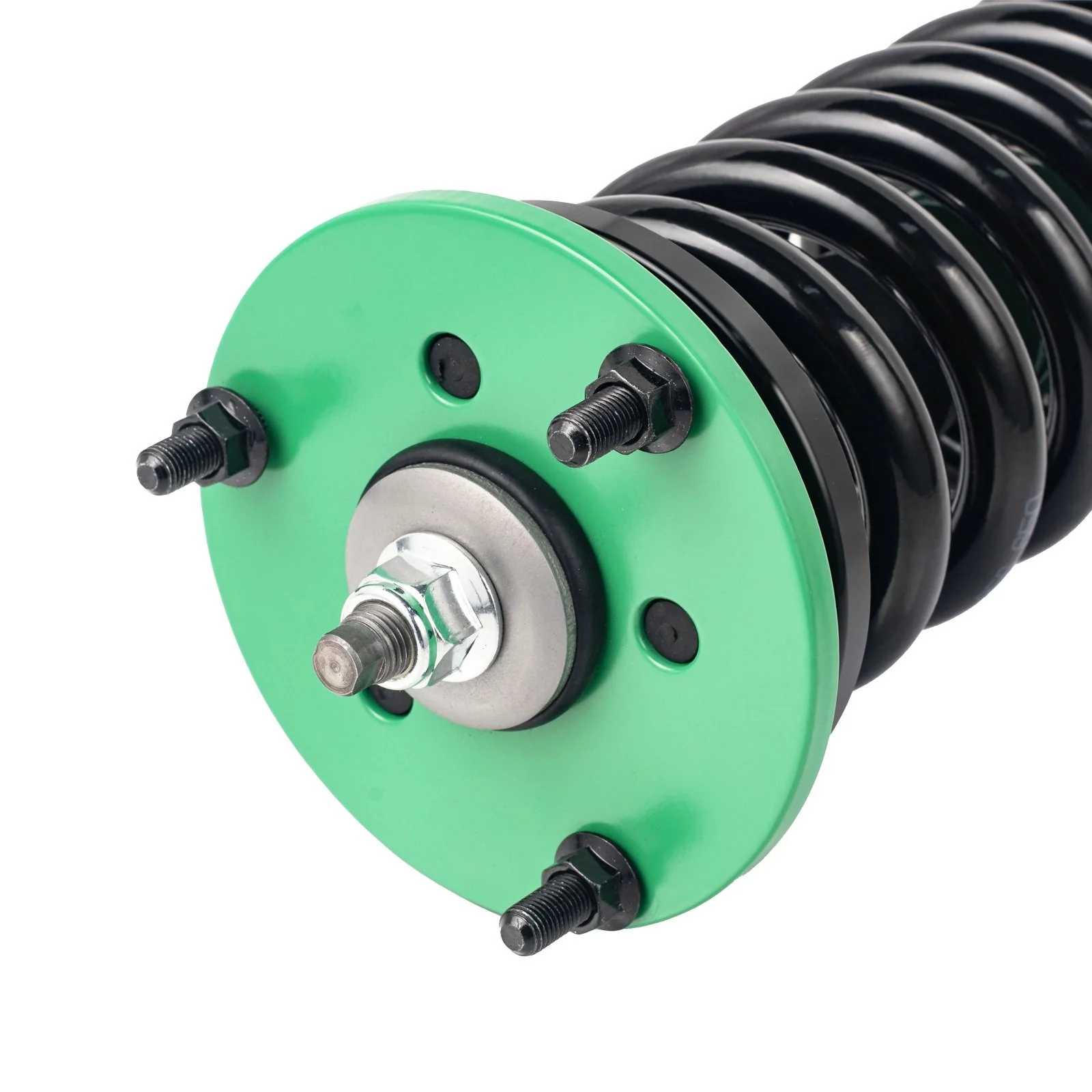

• Front Top Mount: Yes, Standard Type

• Spring Inner Diameter(Front): 75 mm (2.95 inch)

• Extended Length

  • 2009-2013 Models: 598 mm (23.54 inch)

  • 2014-2020 Models: 585 mm (23.03 inch)

• Compressed Length

  • 2009-2013 Models: 457 mm (17.99 inch)

  • 2014-2020 Models: 454 mm (17.87 inch)

• Shock Travel

  • 2009-2013 Models: 141 mm (5.55 inch)

  • 2014-2020 Models: 131 mm (5.16 inch)

• Warrant: 365 days limited warranty from date of purchases, proof requires. Warranty are not transferable.

• Adjustable Ride Height – Level your front end, fit larger tires, or fine-tune your truck’s stance with precision lift control
• 8-Level Rebound Adjustment – Customize damping from smooth highway cruising to firm off-road performance or heavy towing
• 57mm Heavy-Duty Twin-Tube Construction – Enhanced durability, improved heat dissipation, and consistent fade-free performance

Product Description

The REV9 Rocky Road Leveling Coilovers aren’t just about adding height — they’re about getting your truck to sit and drive exactly the way you want it to. Maybe you’re tired of that factory rake. Maybe you’re stepping up to bigger tires. Or maybe you just want your suspension to actually respond when the road gets rough. These adjustable leveling coilovers give you real control over your setup, backed by a solid 57mm twin-tube design that’s built to handle daily driving, weekend trails, and everything in between.

The 8-level rebound adjustment is where things get interesting. One quick adjustment and you can soften things up for a comfortable highway ride — or firm it up when you’re hauling gear, towing, or heading off pavement. The adjuster knob features a fixed 12 o’clock reference point so you always know where you’re set, and the 360-degree over-torque protection means you can fine-tune without worrying about damaging the mechanism. It’s suspension tuning made simple, without sacrificing performance.

At the end of the day, a leveling kit should do more than change how your truck looks — it should change how it feels behind the wheel. The REV9 Rocky Road Suspension system improves stability, reduces body roll, and adds confidence whether you’re cornering on pavement or navigating uneven terrain. If you want a leveled stance, better handling, and adjustable suspension performance in one reliable package, this setup delivers the kind of upgrade you’ll notice every time you drive.

Adjustment Guide

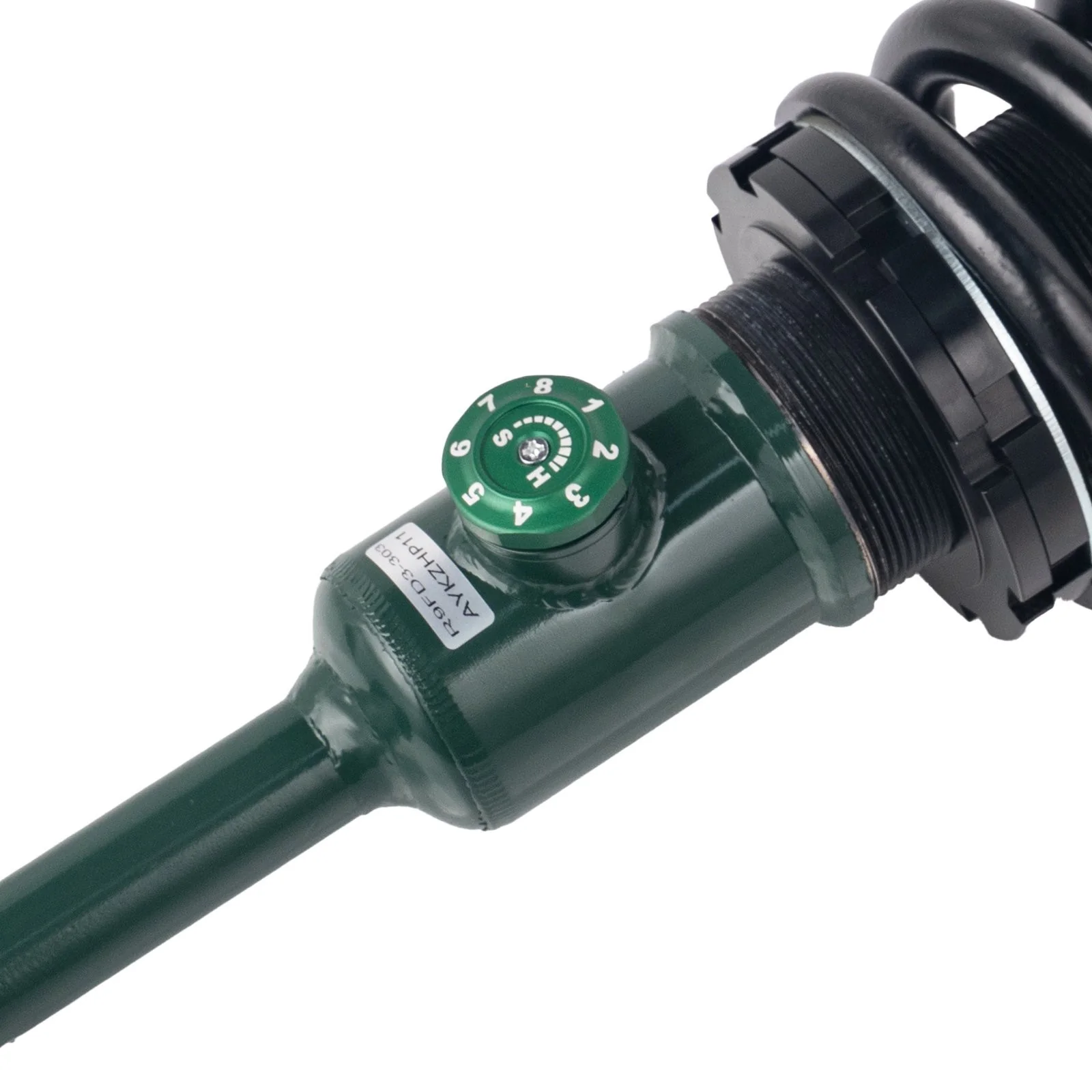

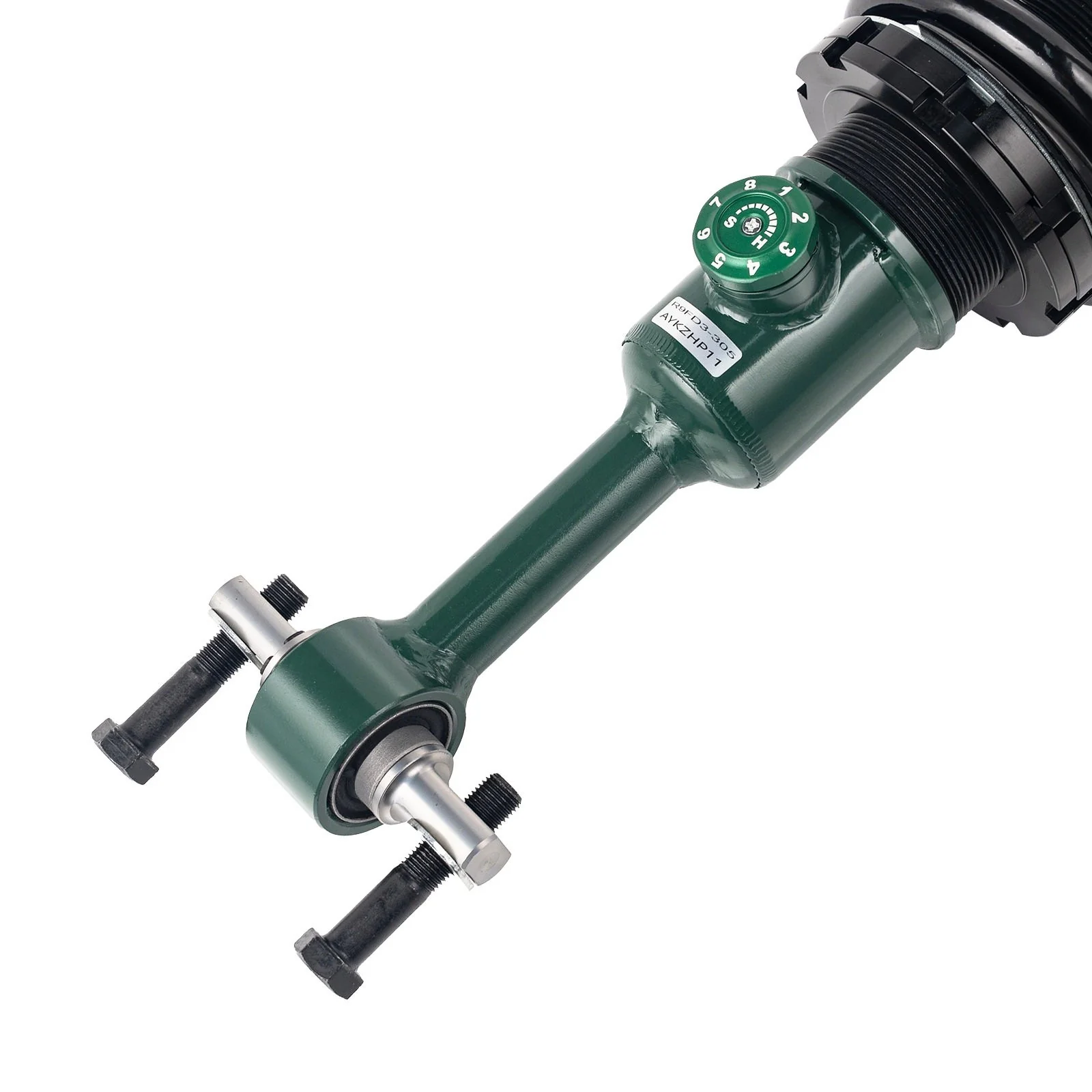

Our dampers utilize a Fixed-Pointer Reference System. While the adjustment knob offers 360-degree rotation for over-torque protection, the 12 o'clock position serves as the permanent 'Set Point, the precision internal detents ensure that each number stays locked in place once aligned with the 12 o'clock indicator.

• Level 1-3 (Firm): Heavy loads, towing, off-road

• Level 4-6 (Medium): Light loads, mixed use

• Level 7-8 (Soft): Empty truck, daily driving
