Rev9 Rocky Road Leveling Kit for Toyota 4Runner (2003-2024) Front Lift Coilovers Up to 0-2" & Rear Shocks Up to 0-1.5"

Fitment Information

• Toyota 4Runner N210 / N280 (2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024)


Special Notes

• Important: These are shock absorbers (dampers) only and do NOT include coil springs. They do not provide lift by themselves - you must install lift blocks or coil spacers separately to achieve lift height. These extended shocks ensure proper performance at that lifted height. Contact us for recommendations on compatible lift components for your vehicle.
• MagneRide requires a module to disable the service light and lift speed limit @ 80mph (Sold separately).

Specs & Features

• Sold in Pairs
• Damping Levels: 8-Level
• Height Adjustment: No
• Variations:

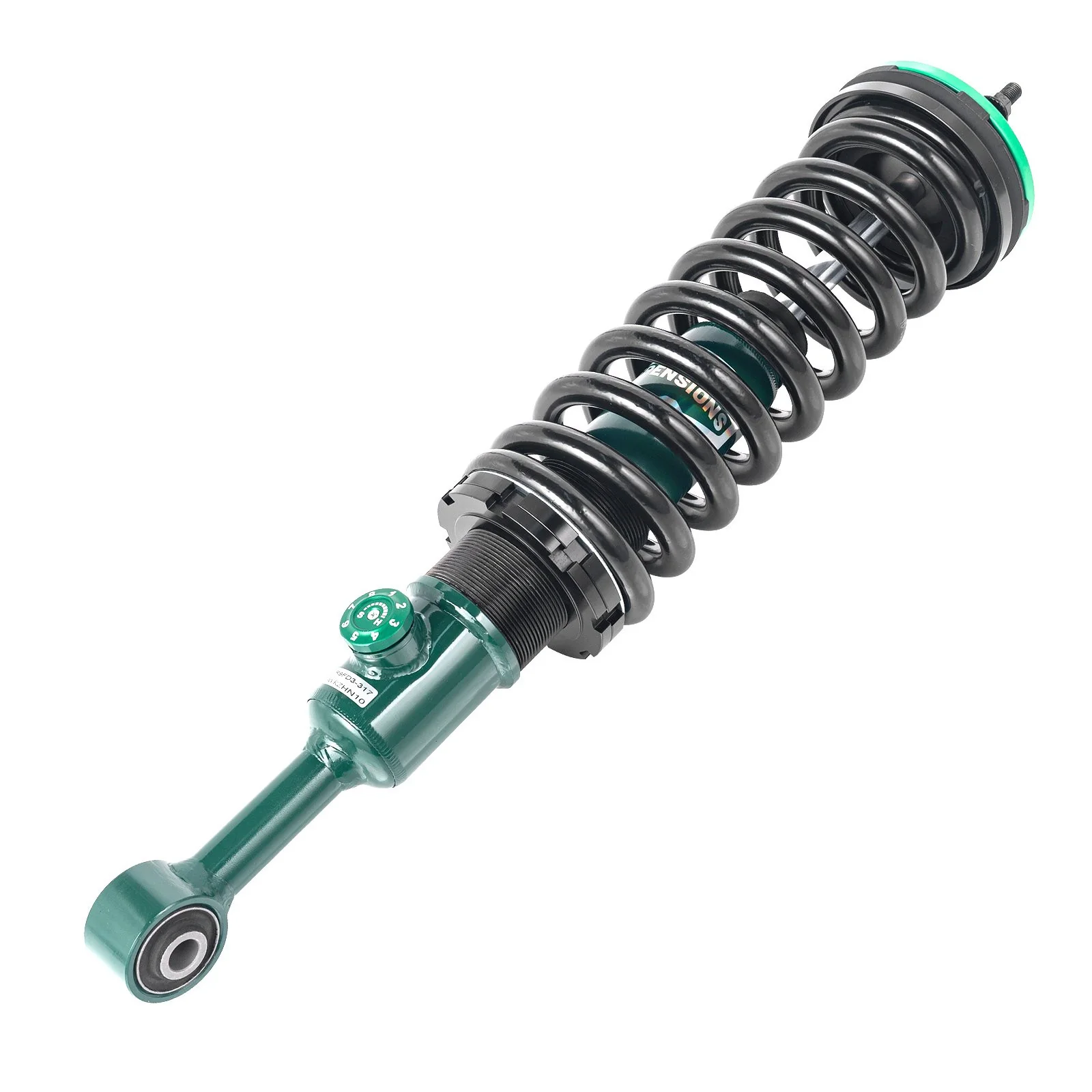

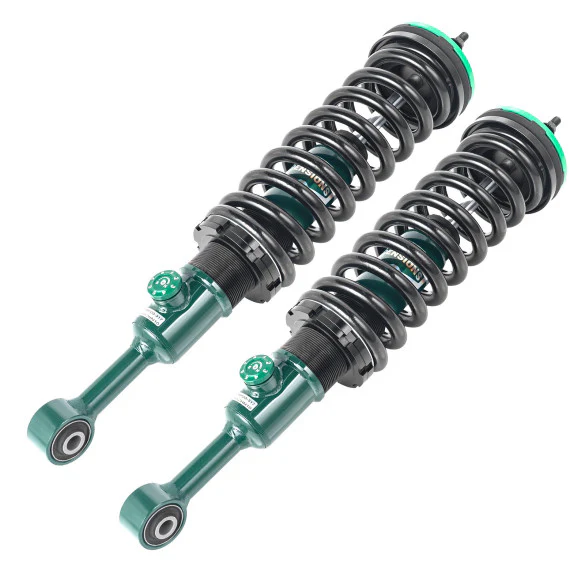

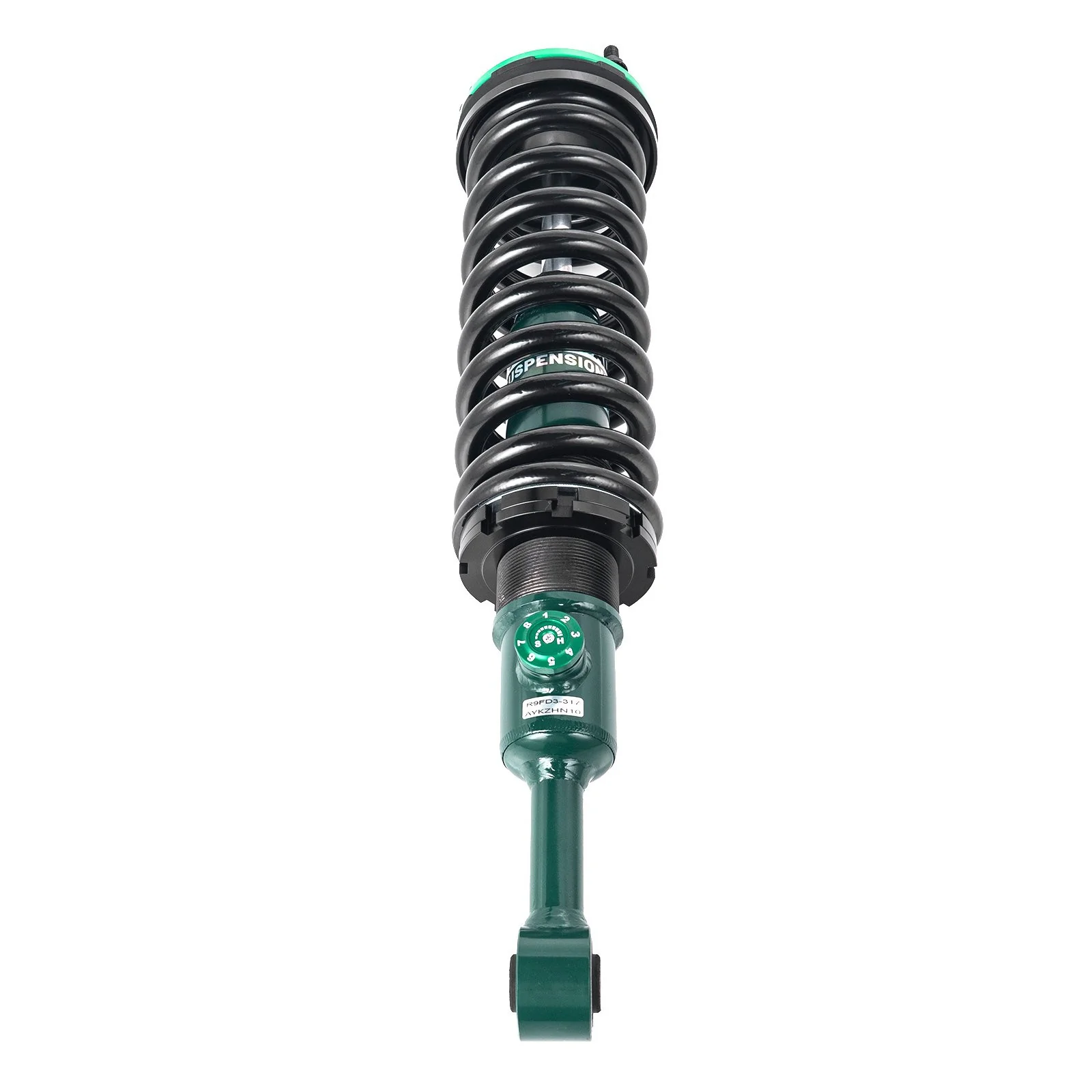

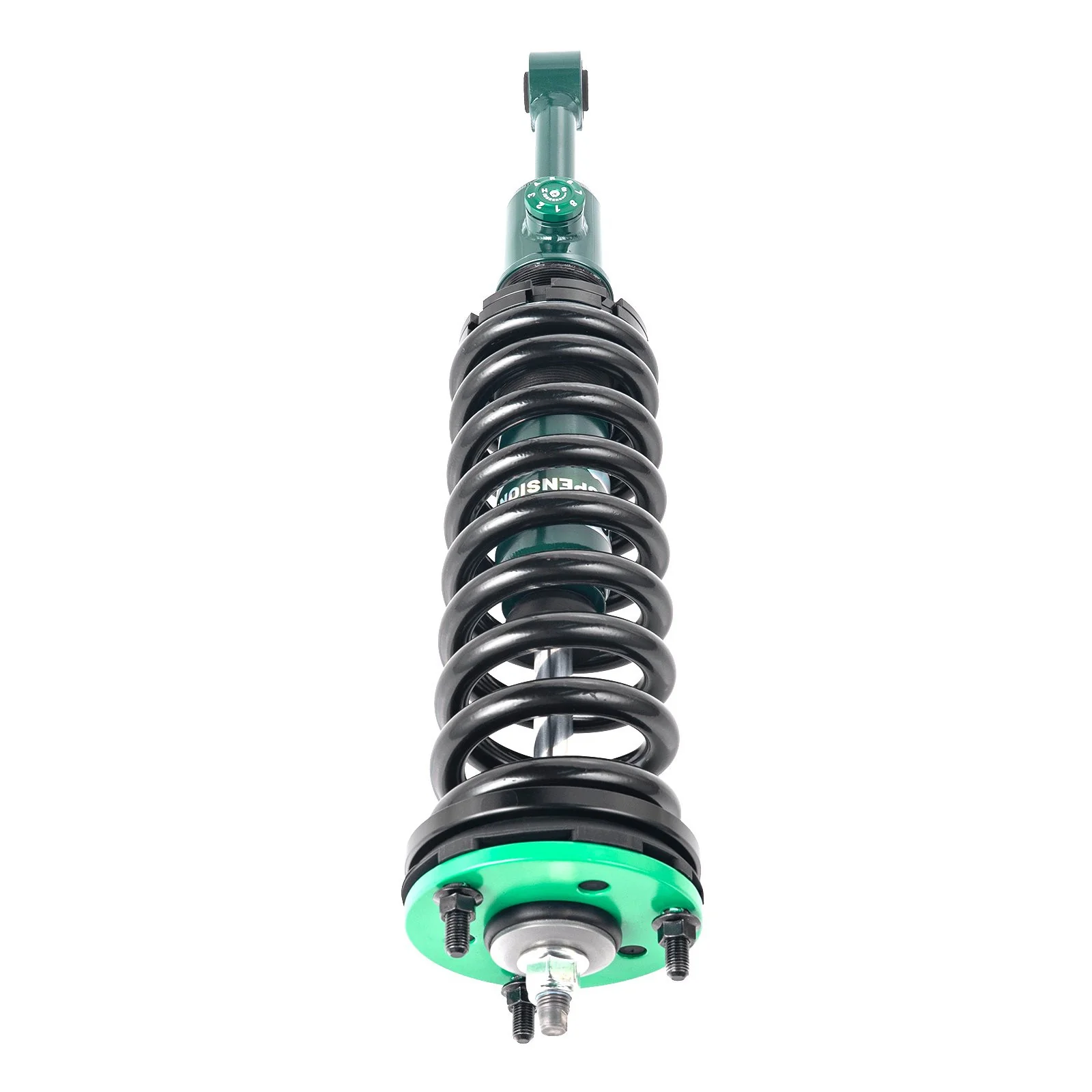

• Front Lift Coilovers:
  • Spring Rate (Front): No
  • Spring Length (Front): No

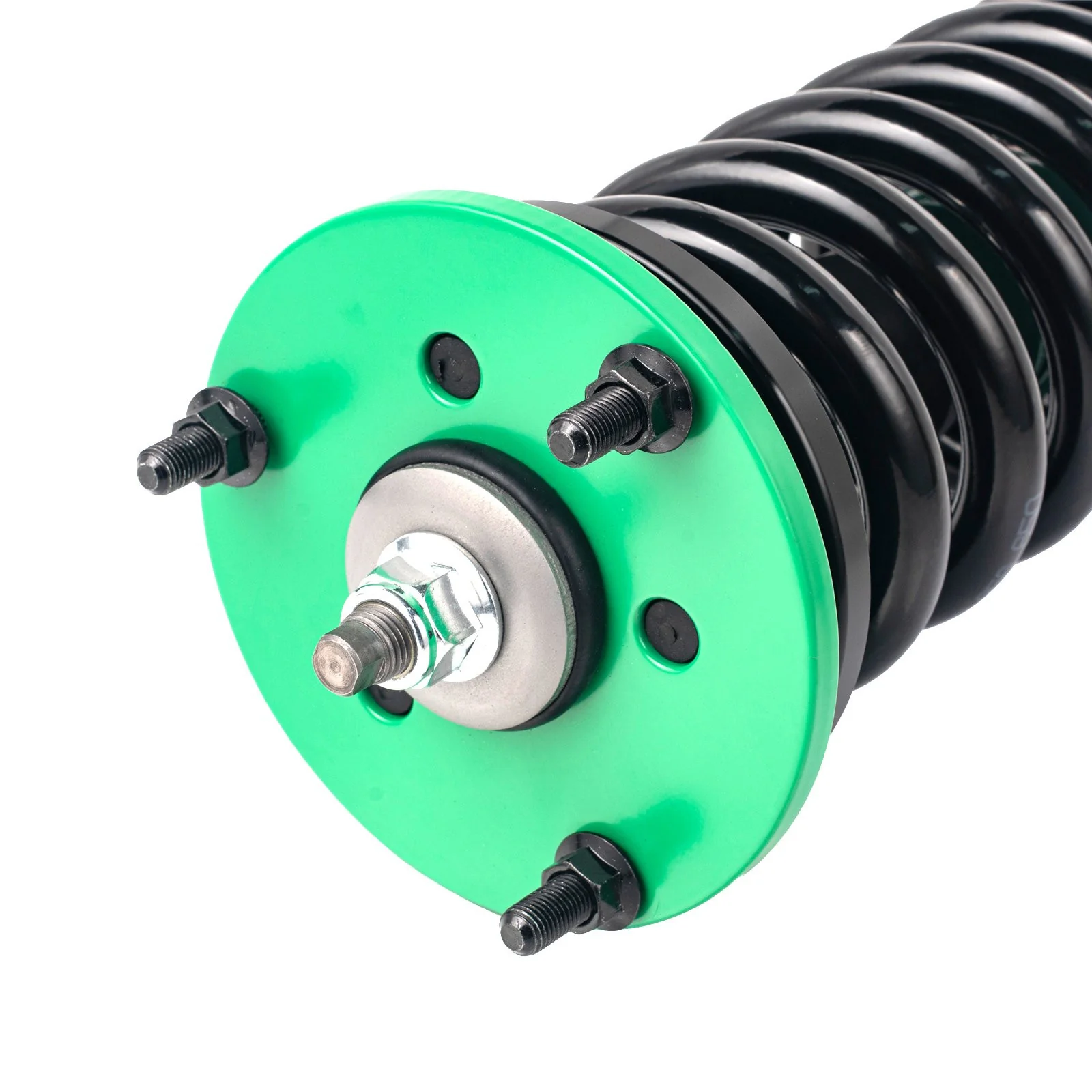

  • Front Top Mount: No
  • Spring Inner Diameter (Front): No
  • Extended Length: 600 mm (23.62 inch)
  • Compressed Length: 373 mm (14.69 inch)
  • Shock Travel: 227 mm (8.94 inch)

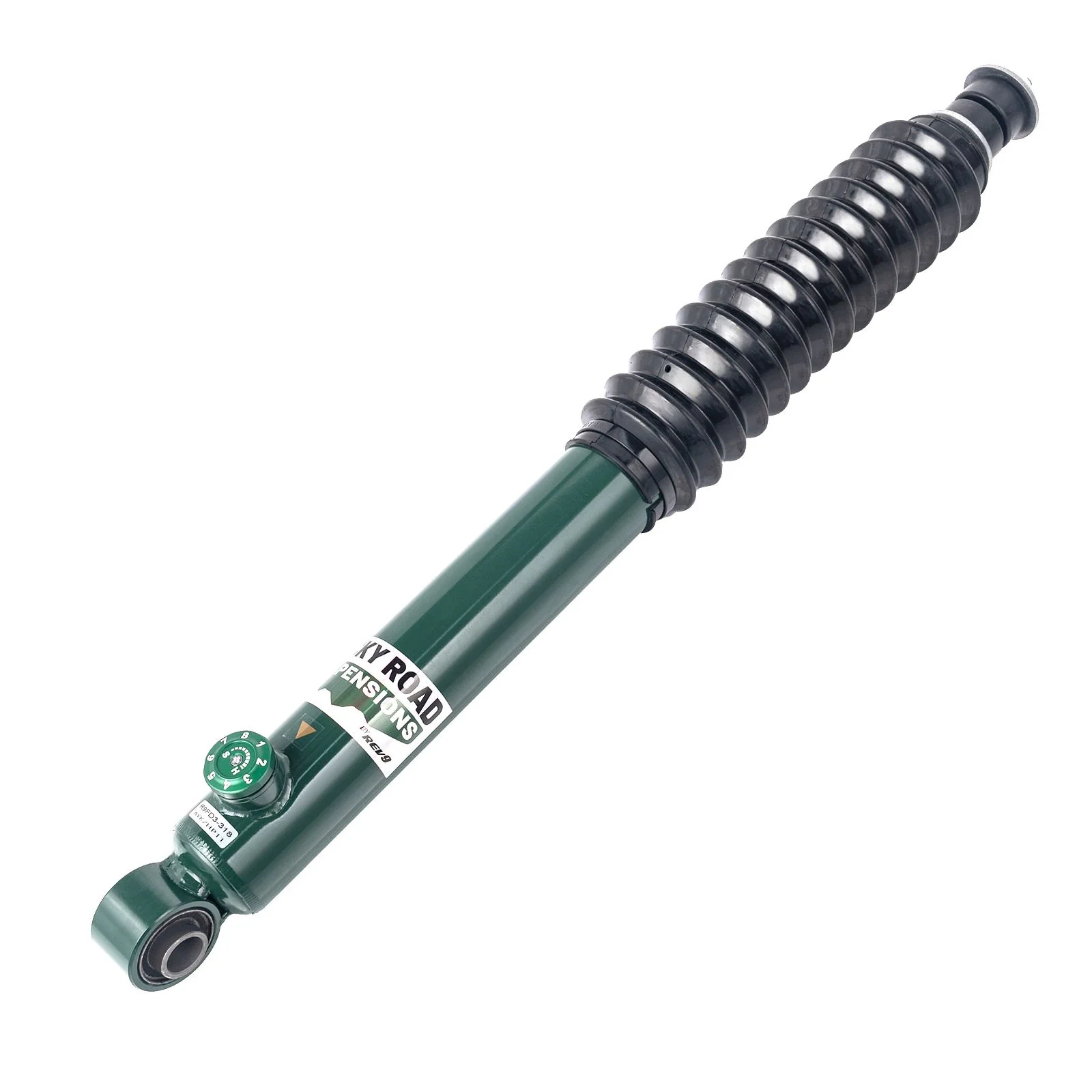

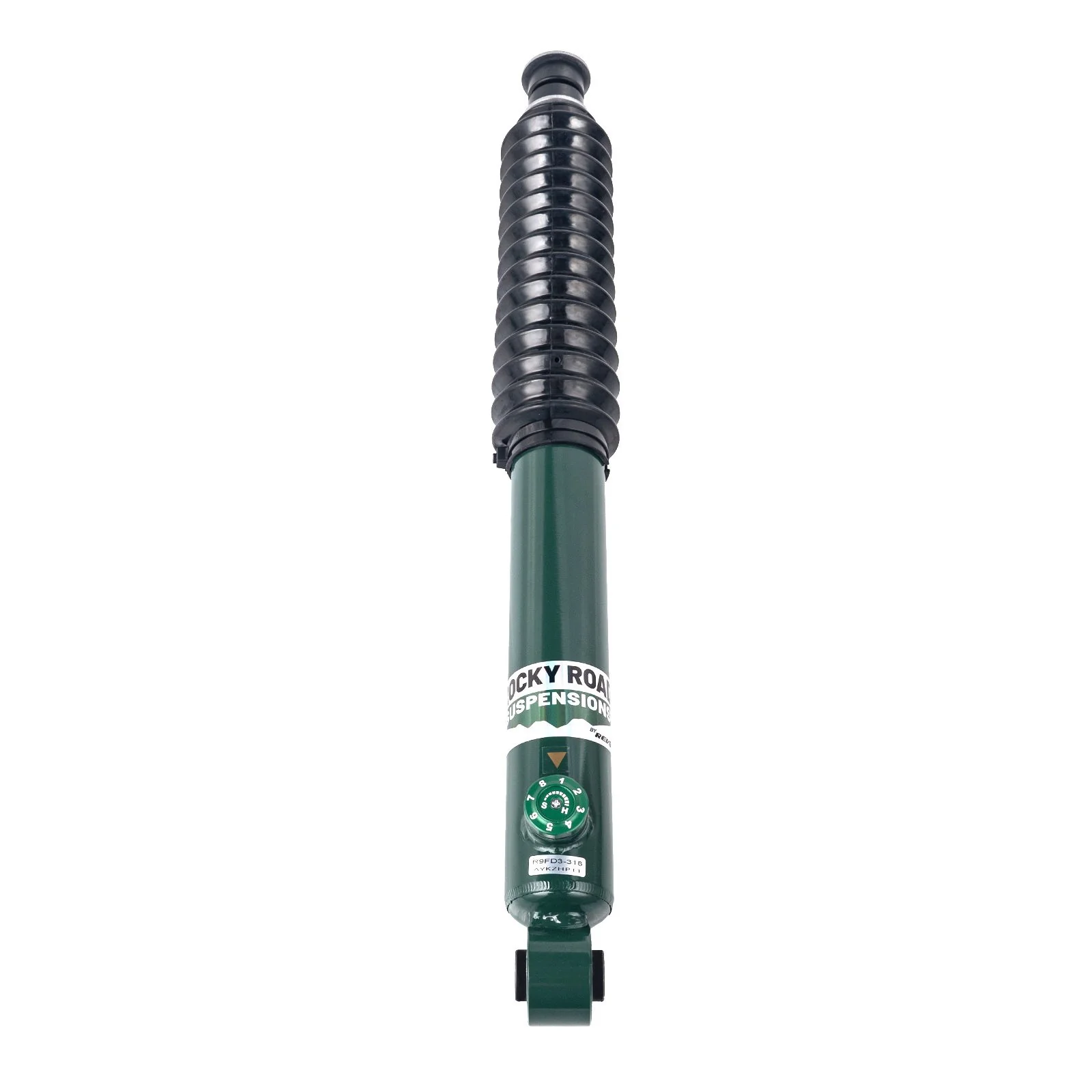

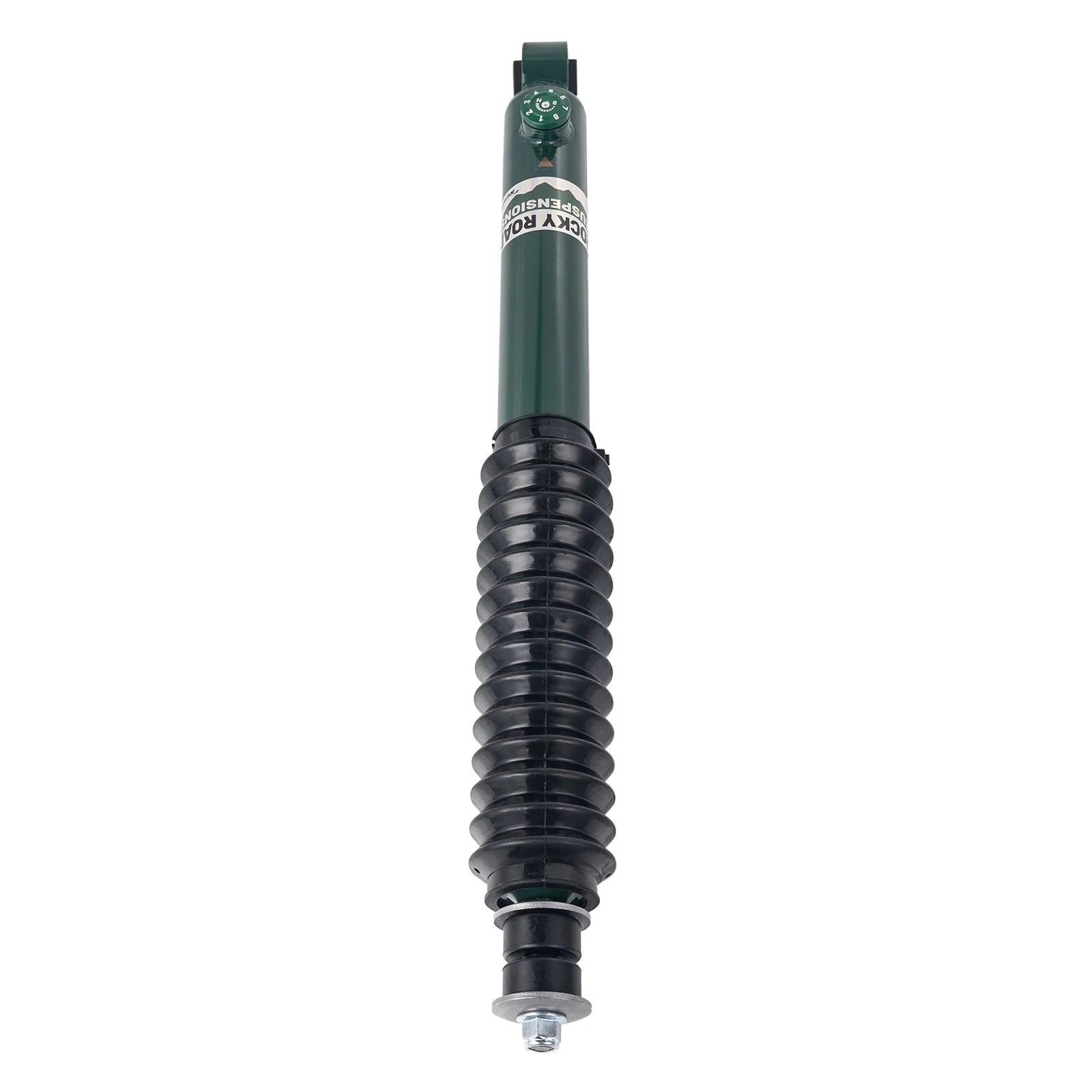

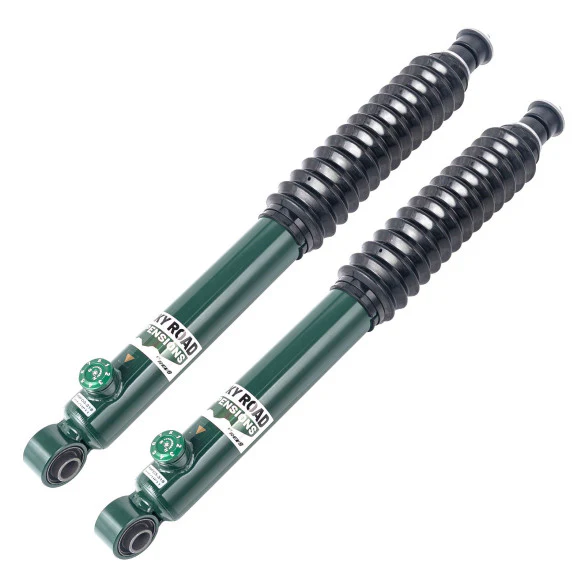

• Rear Shocks:
  • Spring Rate (Front): 650 lbs/inch
  • Spring Length (Front): 356 mm (14.02 inch)
  • Front Top Mount: Yes, standard type
  • Spring Inner Diameter (Front): 75 mm (2.95 inch)
  • Extended Length: 447 mm (17.6 inch)
  • Compressed Length: 425 mm (16.73 inch)
  • Shock Travel: 140 mm (5.51 inch)
• Extended Length Design - Accommodates lifted rear applications with proper suspension travel (requires separate lift blocks or coil spacers - not included)
• 8-Level Rebound Adjustment - Fine-tune damping from soft for empty driving to firm for heavy loads, towing, or off-road use. Features adjuster knob with fixed pointer reference system at 12 O'clock and 360-degree rotation for over-torque protection
• 57mm Twin-Tube Body - Heavy-duty construction provides superior strength, heat dissipation, and fade-free performance
• Performance You Can Feel
  • Proper suspension function at lifted heights
  • Adjustable damping for any load condition
  • No more bottoming out or harsh impacts
  • Professional results OEM shocks can't match
• Warranty Note: 365-day limited warranty from date of purchase (proof required); non-transferable.

Adjustment Guide

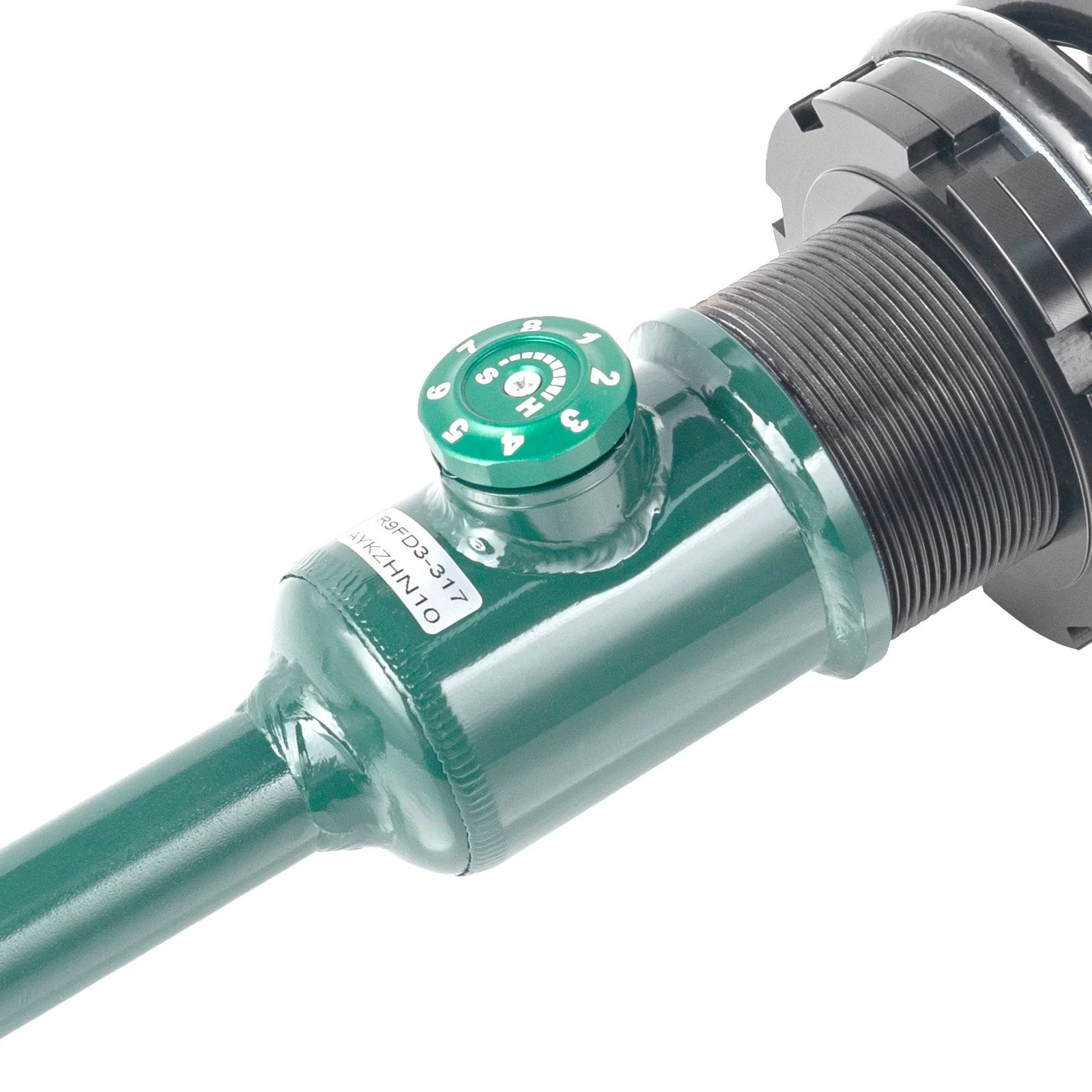

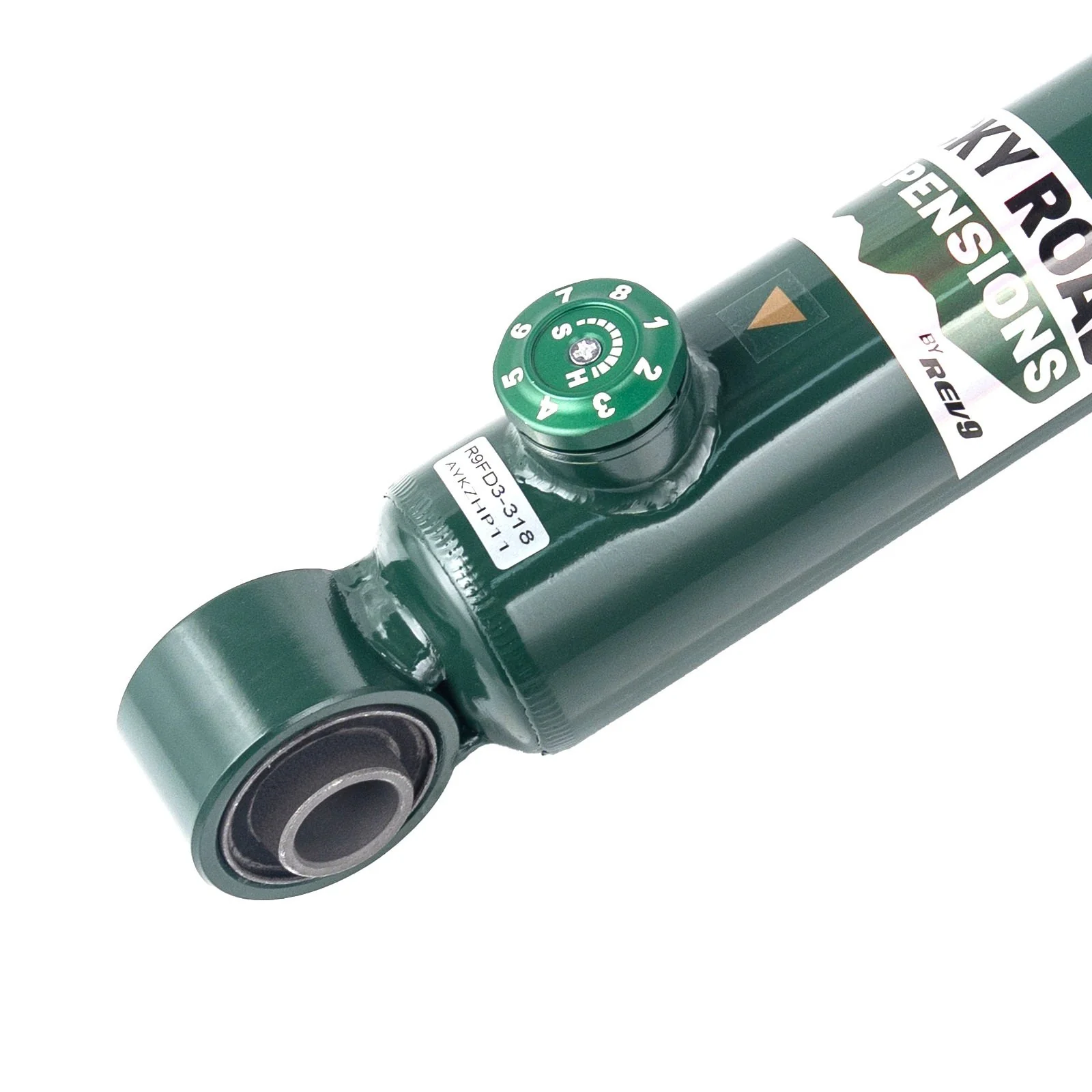

Our dampers utilize a Fixed-Pointer Reference System. While the adjustment knob offers 360-degree rotation for over-torque protection, the 12 o'clock position serves as the permanent 'Set Point, the precision internal detents ensure that each number stays locked in place once aligned with the 12 o'clock indicator.

• Level 1-3 (Firm): Heavy loads, towing, off-road

• Level 4-6 (Medium): Light loads, mixed use

• Level 7-8 (Soft): Empty truck, daily driving

Product Description

ROCKY ROAD SUSPENSION - ADJUSTABLE EXTENDED REAR SHOCKS - For Lifted Applications - Adjustable Damping

Engineered for lifted applications, these extended-length adjustable shocks provide the performance and control your lifted truck needs. Whether you're towing, hauling, or hitting the trails, Rocky Road Suspension extended shocks deliver professional-grade damping at lifted heights where stock shocks fall short.

Why Upgrade to Extended Rear Shocks?

When you lift your truck's rear with blocks or spacers, stock shocks are too short and can't function properly. Our extended-length shocks are specifically designed for lifted applications, providing full suspension travel and 8 levels of adjustable damping. The heavy-duty 57mm twin-tube construction handles everything from daily driving to heavy towing, giving you the control and ride quality that maxed-out OEM shocks simply can't deliver.
