Radium Engineering Fuel Rails Ford S197 Shelby GT500 (2007-2014) 20-0320

Fitment Information

• Ford S197 Shelby GT500 (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014)

Specifications

Ports and Fittings

• The fuel rail ports are tapped for 8AN ORB.
  • 8AN ORB Adapter Fittings

  • 8AN ORB Direct Mount Regulators

  • 8AN ORB Fuel Pulse Dampers

  • Fuel Pressure Gauge Adapters
• Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

What's Included?

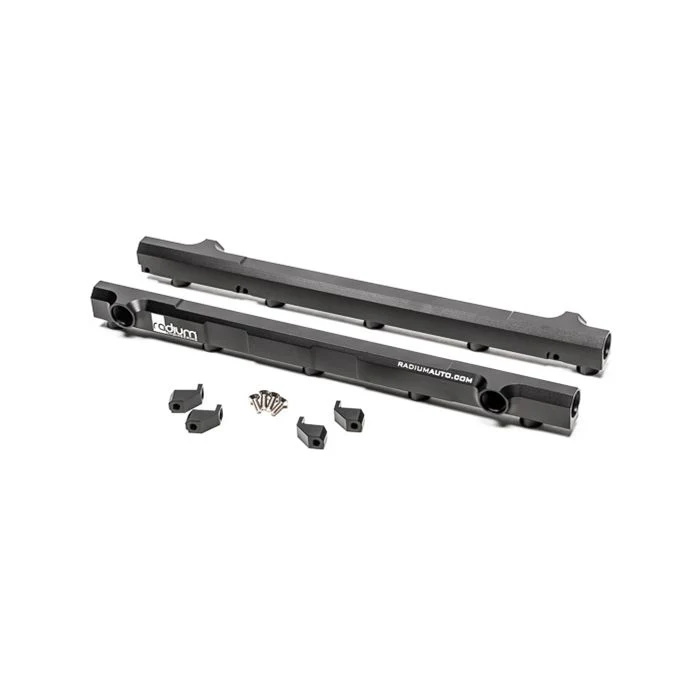

• Black Anodized Laser Etched Aluminum Fuel Rails, RH

• Black Anodized Laser Etched Aluminum Fuel Rail, LH

• Ford Fuel Pressure Sensor 8AN ORB Adapter Fitting

• Stainless Steel Mounting Bolts (x4)

Product Description

This kit is compatible with the 2007-2014 (S197) Shelby GT500 with OEM returnless or aftermarket return fuel systems.

Manufactured with a large internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from solid 6061 aluminum, black anodized, and laser etched for a high quality surface finish. Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors are permitted.
